Hyundai IONIQ 6 Battery Technology
If you’re considering the Hyundai IONIQ 6, you’re probably curious about what really powers this sleek “stream-liner.” Under its floor sits one of the most advanced mass-market EV battery systems available today—efficient, fast-charging, and carefully managed to last. This guide explains the IONIQ 6 battery in clear language: sizes, chemistry, voltage, thermal management, charging behaviour, range, longevity, safety layers, software smarts, and everyday best practices. By the end, you’ll know exactly how it works and how to get the most from it.
Battery sizes at a glance
Hyundai offers the IONIQ 6 with two battery pack options, depending on market and trim:
- Standard Range pack: ~53 kWh total (ideal for urban and short-trip drivers).
- Long Range pack: 77.4 kWh total, the common choice for maximum range and performance.
EV nerd tip: the usable energy you can access is slightly less than the total capacity. On long-range IONIQ 6 models, the usable energy is about 74 kWh, with a small buffer held in reserve to protect the cells and extend life. That protection buffer is normal and intentional.
Cell chemistry and pack architecture
Chemistry: NMC for energy density and performance
IONIQ 6 uses lithium-ion NMC (nickel-manganese-cobalt) cells. This chemistry is popular in mid-to-high-range EVs because it packs a lot of energy into a compact footprint, supports strong acceleration, and can accept high charging power when properly cooled. Some communications specify “NCM/NMC 80-10-10” type cathodes for the long-range pack, indicating high nickel content for energy density.
Voltage: 800-V class platform
Built on Hyundai’s E-GMP platform, the IONIQ 6 is an “800-volt class” EV (nominal pack voltage ~700 V). The benefit? Lower current for the same power, which reduces heat and enables very fast DC charging without needing a giant cable. It can still work smoothly with 400-V chargers, thanks to onboard power electronics that “step up” voltage.

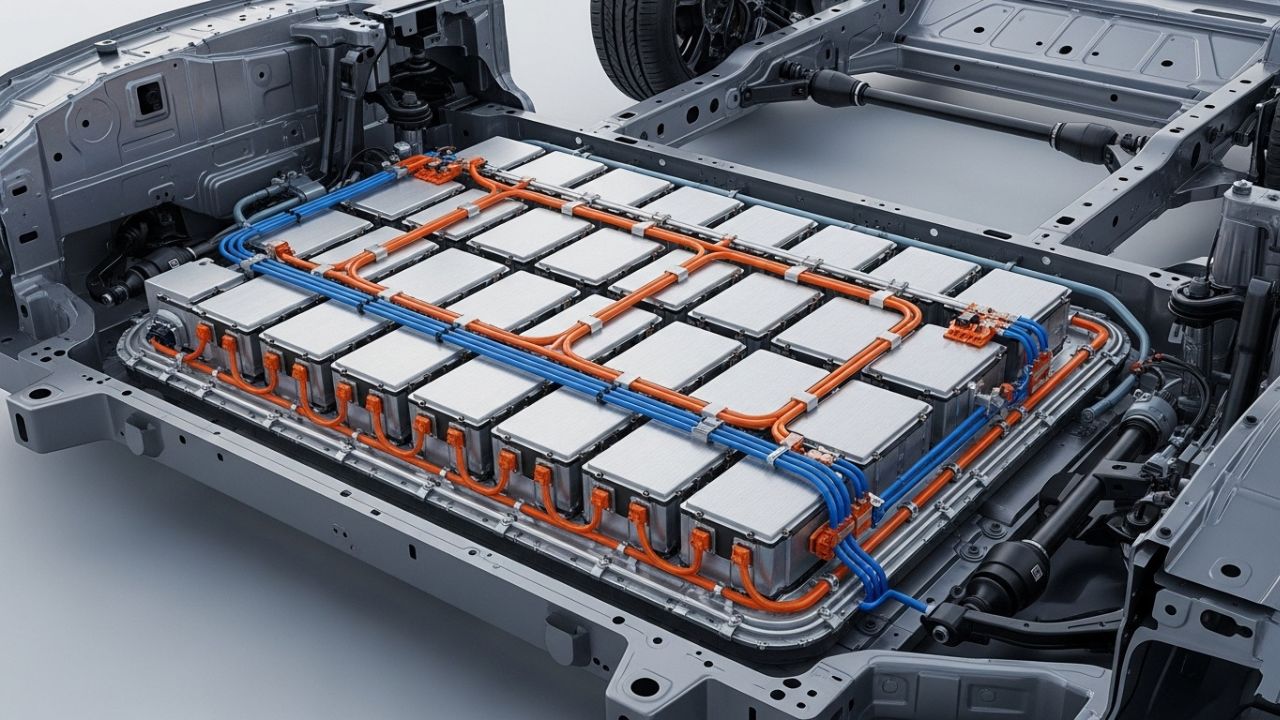

Configuration: Modules, pouches, and protection
The pack is a modular, under-floor design using pouch-format cells mounted in sealed aluminium housings. Pouch cells enable excellent packing efficiency (more kWh in less space), which helps keep the sedan’s floor slim and its centre of gravity low. The modules are monitored individually by the Battery Management System (BMS) to equalise cell groups and maintain balanced health across the pack.
Read Also: Building America’s Electric Future: The Trailblazers of EV Battery Manufacturing
Thermal management: keeping the battery in the “Goldilocks zone”
Fast charging and long life depend on temperature control. The IONIQ 6 uses:
- Liquid cooling/heating circuits to keep the battery near its ideal temperature range in summer and winter.
- Pre-conditioning logic (software) that warms or cools the pack before you arrive at a DC fast charger (when a charger is set as your navigation destination), enabling the highest feasible charging speeds upon arrival.
- Heat pump (on many trims/markets) to reduce winter range loss by heating the cabin more efficiently than a resistive heater.
These systems work together so the battery accepts more power when cold or hot weather would otherwise slow things down. (Exact equipment can vary by market and trim; always check your spec sheet.)
Charging speeds and real-world expectations
AC (home) charging
- Up to 11 kW AC using a Level 2 home or destination charger (three-phase in many markets; in single-phase markets, the actual draw depends on local supply). That’s a full overnight charge for most drivers.
DC fast charging
- On high-power 800-V chargers, the IONIQ 6 can pull well over 200 kW at peak (Hyundai lists up to around 233 kW), enabling a 10%–80% charge in roughly the high-teens of minutes under ideal conditions. Temperature, charger capability, occupancy, and the exact state of charge will affect your result, but the platform’s fast charge curve is a key advantage.
What determines your DC speed?
- Charger output (not all “350 kW” pedestals deliver that to a single car).
- Battery temperature (pre-conditioning helps).
- State of charge (SoC)—charge rates taper as you pass ~60–70% to protect cell health.
- Weather—extreme cold/hot conditions can lower sustained power.
Range and efficiency: why aero matters
The IONIQ 6 is slippery by design (very low drag), and that helps the battery go further. With the Long Range pack, the most efficient trims can achieve excellent WLTP and EPA figures for a sedan of this size (exact ratings vary by market, wheel size, and drivetrain). Hyundai’s press materials highlight the strong energy consumption of the standard-range RWD model (53-kWh pack) at 13.9 kWh/100 km WLTP combined—a strong indicator of how efficient the platform can be when optimized. Real-world results will differ with speed, climate, terrain, and HVAC use, but efficiency is a core strength.
Usable vs. total capacity: why Hyundai keeps a buffer
You’ll often see two numbers for a battery: total (gross) capacity and usable (net) capacity. Hyundai—like many manufacturers—reserves a small top and bottom buffer to protect the cells from the stress of extreme states of charge. For the 77.4-kWh pack, usable energy of ~74 kWh is typical across sources. That buffer helps:
- Maintain performance over many years,
- Reduce noticeable degradation, and
- Keep regenerative braking available near “full.”
This is why your car can show 0% yet still travel a short distance—there is a safety reserve you shouldn’t plan to use, but it’s there to protect the pack and give you a margin to reach a charger.
The BMS (Battery Management System): the brain of the pack
Think of the BMS as the pack’s guardian. It continuously monitors:
- Cell voltages and temperatures across modules
- Current flow in and out of the pack
- Health estimates (State of Health, SoH) and State of Charge (SoC)
- Charge/discharge limits based on temperature and SoC
- Balancing (keeps cells aligned so no group is over-stressed)
The BMS enforces the charge curve (that characteristic rise to peak power and then gradual taper) and also manages regen strength, especially when the battery is cold or near full. While Hyundai doesn’t publish its exact algorithms, the IONIQ 6’s predictable, quick charging behaviour is the visible result.
Safety: layered protection from cell to chassis
Modern EV packs build safety in layers, and the IONIQ 6 follows that playbook:
- Cell level: Chemically stable NMC cells with strict quality control.
- Module level: Structural housings, fuses, sensors, and fire-retardant materials.
- Pack level: Rigid enclosure, isolation monitoring, contactors that disconnect high voltage during faults or crashes, and liquid cooling to limit thermal runaway propagation.
- Vehicle level: Crash structures, fire detection logic, and software interlocks to shut down the high-voltage system if abnormal conditions are detected.
Hyundai backs the high-voltage battery with a long warranty (commonly 8 years/160,000 km; check your region), a strong signal of confidence in durability.
How the IONIQ 6 achieves fast, repeatable charging
Ever notice how some EVs set great one-off charging times, but struggle to repeat them? The IONIQ 6’s consistency is down to a combination of:
- 800-V architecture (lower currents reduce heat and cable losses),
- Robust thermal management (pre-conditioning, active liquid cooling), and
- A well-tuned BMS charge profile (strong mid-SoC charging before a smooth taper).
On a capable 350-kW charger, owners routinely see 10–80% sessions around twenty minutes in favorable conditions, which is competitive with far pricier EVs. Official materials cite peak DC power around ~233 kW and the platform is engineered to hold high rates early in the session rather than just “spiking.”
Everyday charging: best practices to maximise life
You don’t need to baby the battery, but a few habits pay off long-term:
- Live between ~10% and ~80% for daily use. Save 100% charges for road trips or when you genuinely need the range.
- Pre-condition before DC fast charging by setting the charger as your nav destination (where supported), especially in winter.
- Plug in when parked in extreme temperatures. Thermal management can keep the pack happier and sometimes sip grid power instead of battery power.
- Use scheduled charging at home to finish near your departure time rather than sitting at 100% for hours.
- Keep software updated. Automaker updates can refine charging behavior and thermal logic.
Frequently asked questions
Q: Why does my car slow charging above ~70%?
A: That’s normal. As SoC rises, the BMS tapers power to reduce stress and heat. You’ll spend the least time per kWh when charging 10–60% (ish). Plan road-trip stops around that “fast middle.”
Q: Is 100% bad?
A: No—occasionally reaching 100% is fine, especially before a trip. Just avoid leaving it at 100% for long periods.
Q: Can I fast-charge all the time?
A: You can, and the car will protect itself—but home AC charging is gentler and usually cheaper. Use DC fast charging primarily for travel.
Q: Will cold weather hurt the battery?
A: Cold reduces power and slows charging temporarily, but it doesn’t “damage” the pack. Pre-conditioning and a warm garage help. The heat pump (where equipped) also improves winter efficiency.
Read Also: Best EV Battery Manufacturing Company in Canada in 2025: Powering the Future of Clean Transportation
Key numbers to remember
- Battery sizes: ~53 kWh (Standard) or 77.4 kWh (Long Range total).
- Usable energy (Long Range): ~74 kWh.
- Chemistry: NMC (nickel-manganese-cobalt) pouch cells.
- Architecture: 800-V class, nominal ~700 V.
- AC charging: Up to 11 kW.
- DC charging: Peak ~233 kW; 10–80% in roughly the high-teens of minutes in ideal conditions.
Why the IONIQ 6 battery stands out
- Efficiency first: The car’s low-drag body lets Hyundai size the pack smartly, not just massively. You get excellent real-world range without hauling unnecessary weight.
- High-voltage speed: 800-V hardware means quick, repeatable top-ups and shorter trip times on modern high-power chargers.
- Thoughtful buffers and management: The ~74-kWh usable window (on long-range) and Hyundai’s conservative charge logic are designed to keep the pack healthy for years.
- Backed by warranty: Hyundai’s high-voltage battery warranty coverage is competitive and transferable in many markets—always a good sign.
Conclusion
The Hyundai IONIQ 6’s battery isn’t just a big box of electrons. It’s a carefully engineered system—NMC chemistry, 800-V architecture, smart buffers, and active thermal control—all orchestrated by a BMS that priorities both speed and longevity. In daily use, that means simple routines (charge at home, fast-charge on trips), excellent efficiency, and the confidence that the pack is looking after itself in the background. If you want an EV that blends fast charging with long-term durability—and does it in a sleek, efficient body—the IONIQ 6 battery tech is a major reason the car feels so polished on the road.
