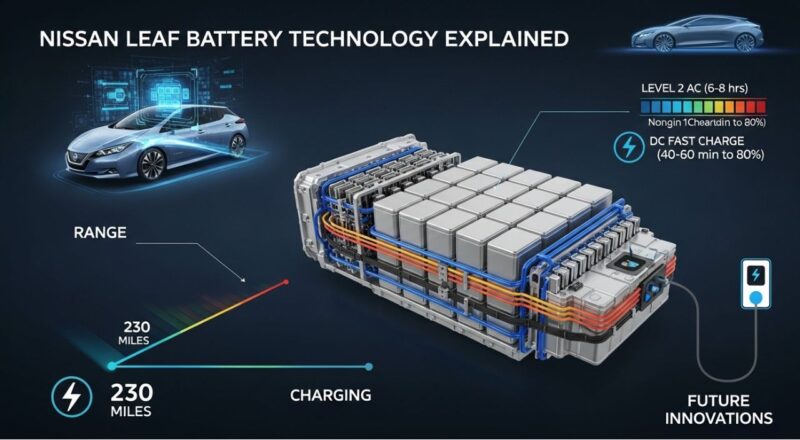

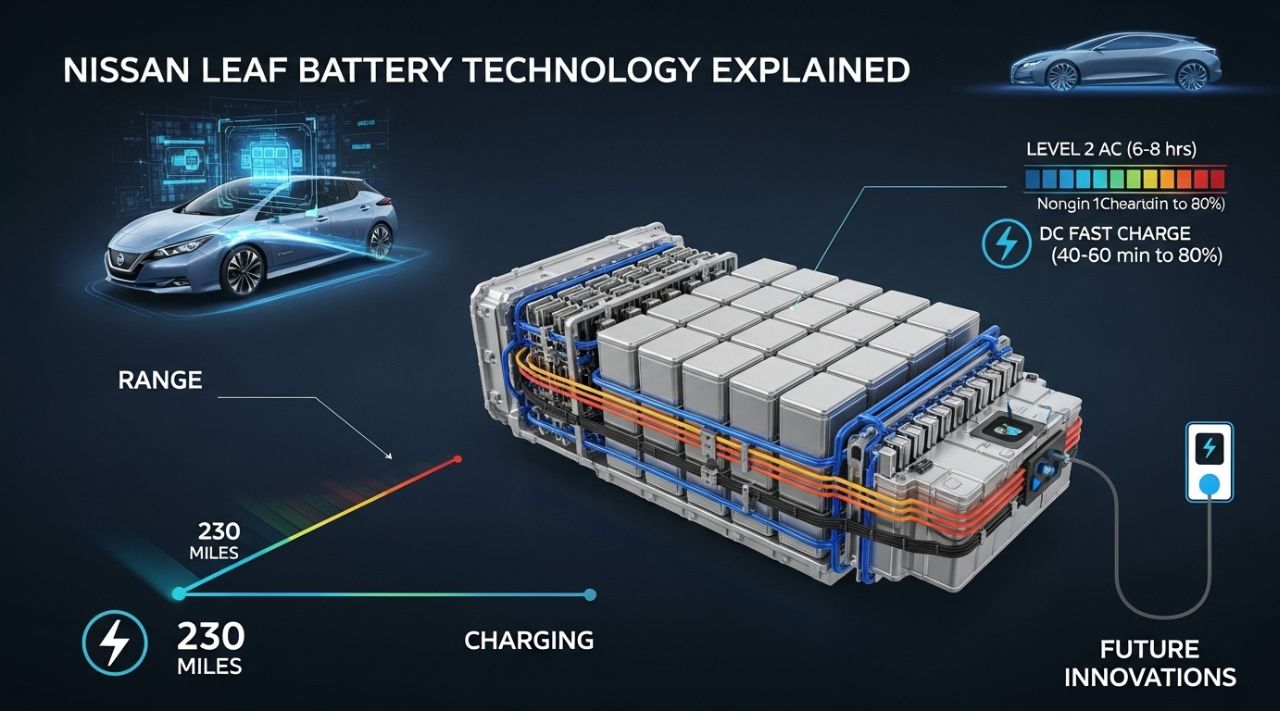

Nissan Leaf Battery Technology Explained – Range, Charging, and Future Innovations

The Nissan Leaf is one of the most popular and widely recognised electric vehicles (EVs) in the world. Since its launch, it has played a major role in making electric mobility accessible to everyday drivers. At the heart of the Leaf’s success lies its battery technology, which determines everything from driving range to performance, charging speed, and long-term reliability.

This article provides a complete explanation of Nissan Leaf’s battery technology, including how it works, what makes it unique, its different versions, charging methods, durability, and future developments.

Introduction to the Nissan Leaf Battery

Unlike traditional cars that rely on internal combustion engines and gasoline, the Nissan Leaf uses a lithium-ion battery pack to power its electric motor. The battery serves as the primary energy source, storing electricity that is used to drive the car.

The Leaf’s battery is located under the floor of the vehicle, which helps lower the centre of gravity, improves stability, and maximises interior space. Nissan designed the battery system to provide a balance of energy density, safety, cost-efficiency, and longevity.

Read Also: What Attorneys Want You to Know Before Buying EV Insurance

Evolution of the Nissan Leaf Battery

Over the years, Nissan has upgraded the Leaf’s battery capacity to meet customer demand for longer driving ranges.

• 2010 (First Generation): The original Leaf came with a 24 kWh battery, offering around 117 km (73 miles) of range on a single charge.

• 2013 Upgrade: Nissan improved the chemistry and durability but retained the 24 kWh size.

• 2015-2016: A new 30 kWh battery option was introduced, pushing the range to about 172 km (107 miles).

• 2018 (Second Generation): The base model came with a 40 kWh battery, delivering up to 240 km (150 miles) of range.

• 2019 – Leaf Plus: Nissan introduced a 62 kWh battery, extending the driving range up to 364 km (226 miles), depending on driving conditions.

This progression shows how battery technology in the Leaf has evolved steadily, making it suitable for both city driving and longer commutes.

Lithium-Ion Battery Chemistry

The Nissan Leaf battery uses Lithium-ion (Li-ion) cells, which are also found in smartphones, laptops, and other EVs. However, the Leaf’s battery is specially engineered for automotive applications, focusing on safety and reliability.

• Cathode Material: Lithium Nickel Manganese Cobalt Oxide (NMC) is commonly used, offering a good balance between energy density and lifespan.

• Anode Material: Typically graphite, which stores lithium ions during charging.

• Electrolyte: A liquid solution that enables the movement of lithium ions between anode and cathode.

During charging, lithium ions move from the cathode to the anode. During driving (discharging), they flow back from anode to cathode, generating electricity to power the motor.

Battery Cooling System

Unlike some EVs that use liquid cooling (such as Tesla), the Nissan Leaf relies on a passive air-cooling system for its battery.

• Air-Cooled System: The battery uses ambient air and fans to dissipate heat instead of complex liquid coolant pipes.

• Advantages: Lower cost, simpler design, and fewer parts to maintain.

• Disadvantages: In very hot climates, the lack of liquid cooling can sometimes affect charging speed and long-term battery health.

Despite this, Nissan designed the Leaf to function reliably in most markets, and many drivers report years of satisfactory battery performance.

Charging Options and Technology

The Nissan Leaf supports multiple charging methods depending on the battery size and model:

1. Level 1 Charging (120V AC):

   • Standard household outlet.

   • Adds about 5-8 km (3-5 miles) of range per hour.

   • Best suited for overnight charging.

2. Level 2 Charging (240V AC):

   • Requires a home charging station or public AC charger.

   • Can fully charge a 40 kWh battery in 7-8 hours and a 62 kWh battery in 11-12 hours.

3. DC Fast Charging (CHAdeMO Standard):

   • Available at public charging stations.

   • Charges a 40 kWh Leaf to 80% in about 40 minutes.

   • A 62 kWh Leaf takes around 60 minutes for 80% charge.

Nissan Leaf was among the first EVs to adopt CHAdeMO fast charging technology, giving it a strong advantage in early EV adoption markets.

Range Performance of Nissan Leaf

The driving range of the Nissan Leaf depends on battery size, driving style, terrain, and weather conditions:

• 24 kWh battery: ~117 km (73 miles).

• 30 kWh battery: ~172 km (107 miles).

• 40 kWh battery: ~240 km (150 miles).

• 62 kWh battery (Leaf Plus): ~364 km (226 miles).

This range is competitive for daily commutes and urban driving, making the Leaf an ideal city EV while still offering extended-range options for longer trips.

Battery Durability and Warranty

Nissan designed the Leaf’s battery to last 8 to 10 years or more, depending on usage and climate conditions.

• Warranty Coverage:

  • 8 years / 100,000 miles against defects.

  • Coverage against excessive capacity loss (if the battery drops below 9 bars out of 12).

Real-world reports show that many Nissan Leafs still retain over 70-80% of their original battery capacity even after a decade of use.

Battery Recycling and Second Life

As part of sustainability, Nissan has invested in battery recycling and second-life applications.

• Old Leaf batteries are repurposed for home energy storage systems, backup power for buildings, and even renewable energy projects.

• This ensures that used batteries do not end up as waste but continue to provide value for years after their automotive life cycle.

Nissan’s Future Battery Plans

Nissan is working on solid-state battery technology, which promises:

• Higher energy density (longer range).

• Faster charging times.

• Improved safety and durability.

• Lower costs, making EVs more affordable.

Solid-state batteries are expected to enter Nissan’s lineup in the late 2020s, potentially transforming the Leaf or its successor into a more powerful and efficient EV.

Read Also: The Essential Guide to Electric Vehicle Charging Stations in Michigan

Key Advantages of Nissan Leaf Battery Technology

• Affordable and accessible EV battery technology.

• Reliable lithium-ion chemistry with proven performance.

• Multiple battery options (24 kWh to 62 kWh) for different driving needs.

• CHAdeMO fast charging support.

• Strong warranty and durability track record.

• Commitment to recycling and sustainability.

Conclusion

The Nissan Leaf’s battery technology has been a driving force in the global shift toward electric vehicles. From the early 24 kWh models to today’s 62 kWh extended-range versions, the Leaf has shown continuous improvement in energy storage, range, and efficiency.

While some competitors use liquid cooling or higher-capacity packs, the Leaf remains one of the most affordable, reliable, and widely used EVs worldwide, making electric mobility accessible to millions. With Nissan’s future solid-state battery plans, the Leaf’s legacy is likely to grow even stronger in the years ahead.
