Tesla Model 3 Battery Technology Explained: Chemistry, Range, Charging & Future Innovations

When the Tesla Model 3 was first introduced in 2017, it changed the way people looked at electric cars. No longer were EVs considered niche vehicles with limited range and slow performance. Tesla showed the world that an electric car could be fast, practical, stylish, and—most importantly—capable of long-distance travel thanks to advanced battery technology.

At the heart of this success lies the Tesla Model 3 battery pack, a masterpiece of engineering that combines cutting-edge chemistry, clever thermal management, and innovative design. In this article, we’ll explore Tesla Model 3’s battery technology in full detail—covering its structure, chemistry, cooling system, charging capabilities, safety features, and future innovations.

Table of Contents

The Role of the Battery in the Tesla Model 3

Unlike traditional cars that run on petrol or diesel, the Tesla Model 3 runs entirely on electricity stored in its lithium-ion battery pack. This pack isn’t just one giant battery but rather a collection of thousands of small cells, similar in size to AA batteries, arranged in modules. Together, they form the energy source that powers the electric motor, infotainment system, climate control, and every other component of the vehicle.

The importance of Tesla’s battery cannot be overstated: it determines the driving range, performance, charging speed, and overall cost of the Model 3.

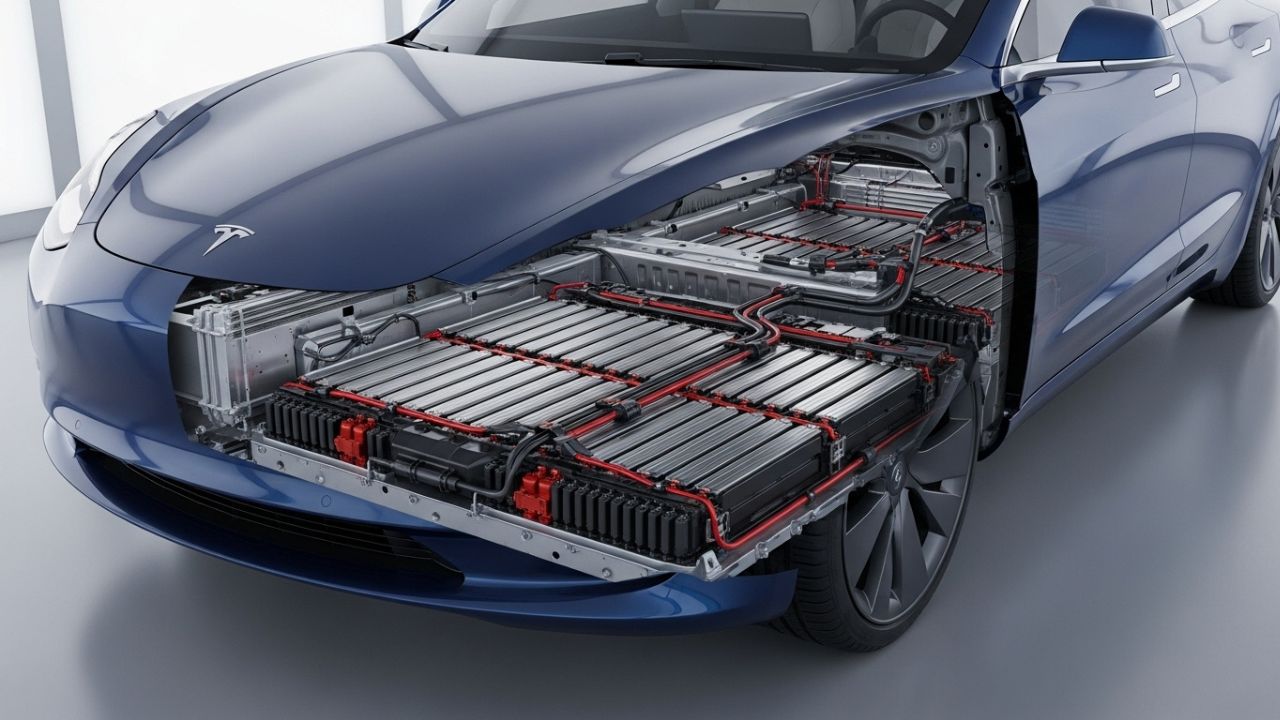

Battery Pack Architecture

Tesla Model 3’s battery pack is made up of 2170-type lithium-ion cells (also known as 21700 cells). These cells are larger and more energy-dense than the older 18650 cells used in the Model S and Model X. The number “2170” refers to the dimensions: 21 mm diameter and 70 mm length.

Why 2170 Cells?

Higher energy density: Stores more power in a smaller space.
Improved thermal control: Generates less heat than smaller cells.
Lower cost per kWh: More efficient manufacturing process.

The battery pack in the Model 3 is usually divided into four modules, each containing hundreds of these 2170 cells. Together, they create a pack that can store anywhere from 50 kWh to 82 kWh, depending on the version (Standard Range, Long Range, or Performance).

Battery Chemistry

Tesla has experimented with several battery chemistries, and the Model 3 makes use of different types depending on the market and model:

Nickel-Cobalt-Aluminium (NCA) – used in higher-end versions like Long Range and Performance.
- High energy density → longer range.
- Suitable for fast acceleration.
Lithium Iron Phosphate (LFP) – used in Standard Range models.
- Lower cost compared to NCA.
- Longer life cycle and better durability.
- Slightly lower energy density but safer and less prone to overheating.

By diversifying battery chemistry, Tesla ensures both cost efficiency and performance flexibility.

Thermal Management System

One of Tesla’s most important innovations is its liquid cooling system. Unlike some EV makers that rely only on air cooling, Tesla uses glycol-based liquid coolant that flows through thin metal tubes running between the battery cells.

Benefits of Liquid Cooling:

Keeps cells at an optimal temperature (~20°C to 40°C).
Prevents overheating during rapid acceleration or Supercharging.
Improves lifespan of the battery by avoiding extreme temperature swings.
Enhances cold-weather performance.

This system allows the Model 3 to handle repeated fast charging sessions and maintain battery health for hundreds of thousands of kilometres.

Charging Capabilities

The Tesla Model 3 is known for its fast charging speeds. Depending on the version, the battery can support:

Supercharging (DC fast charging) – up to 250 kW with V3 Superchargers. This allows the battery to gain around 170 miles (274 km) of range in just 15 minutes.
Home charging (AC) – typically through a Tesla Wall Connector at 11 kW, allowing overnight charging.
Public AC charging stations – slower but convenient for top-ups.

The secret to this fast charging lies in the battery’s thermal management and cell chemistry, which allow rapid intake of energy without causing damage.

Battery Safety Features

Safety is a major concern when dealing with large lithium-ion batteries. Tesla has engineered multiple safety layers into the Model 3’s battery system:

Cell isolation – if one cell fails, it doesn’t cause a chain reaction.
Fire-resistant cooling materials – to limit overheating.
Automatic disconnects – in the event of a collision, the high-voltage battery disconnects from the car.
Continuous monitoring – onboard sensors constantly measure voltage, temperature, and current.

Thanks to these measures, Tesla batteries are among the safest in the EV industry.

Battery Longevity and Warranty

Tesla guarantees its Model 3 batteries with an 8-year warranty (or between 100,000 to 120,000 miles, depending on the version).

In real-world conditions, studies have shown that Tesla batteries lose only about 5–10% of their capacity after 200,000 miles, which is significantly better than many competitors. Some Model 3 owners report over 300,000 miles on the original pack with minimal degradation.

The use of LFP chemistry in Standard Range models further extends lifespan, as these batteries can withstand more charge cycles.

Innovations: Structural Battery and 4680 Cells

Tesla isn’t stopping with the 2170 cell. The company is moving towards 4680 cells (46 mm diameter, 80 mm length), which promise:

Higher energy density (more range).
Lower cost per kWh (affordable EVs).
Structural integration (battery becomes part of the car’s frame, reducing weight).

Future versions of the Model 3 (possibly starting with the updated “Highland” and beyond) may adopt this structural battery pack design, improving efficiency and reducing manufacturing costs.

Recycling and Sustainability

Tesla has also placed emphasis on battery recycling. Through partnerships with companies like Redwood Materials, the aim is to recover up to 95% of valuable metals such as lithium, cobalt, and nickel from old batteries.

This not only reduces environmental impact but also ensures long-term sustainability of EV production.

Comparison with Competitors

Compared to other EVs in its price range, the Tesla Model 3’s battery technology stands out because:

Faster charging compared to many Hyundai, Kia, or VW models.
Better efficiency (more miles per kWh).
Wider charging network through Tesla Superchargers.
Proven durability in long-term use.

While rivals are catching up, Tesla’s head start in battery innovation keeps it ahead in many areas.

The Future of Tesla Batteries

The battery technology in the Tesla Model 3 is already impressive, but the future looks even brighter:

4680 cells will make EVs cheaper and more efficient.
Next-gen chemistries may remove cobalt entirely, reducing costs and environmental impact.
Solid-state batteries (still in development) could one day replace liquid electrolyte batteries, offering faster charging and much higher energy density.

Tesla’s constant innovation ensures that its vehicles will remain leaders in EV performance for years to come.

Conclusion

The Tesla Model 3 battery technology is one of the key reasons the car has become the world’s best-selling electric vehicle. From its 2170 lithium-ion cells and advanced thermal management to its fast-charging capabilities and impressive longevity, the Model 3 sets a benchmark for what an EV battery should deliver.

Tesla’s focus on safety, efficiency, and sustainability ensures that owning a Model 3 is not just about driving electric—it’s about being part of a technological revolution. And with next-generation innovations like 4680 cells and structural batteries on the horizon, Tesla is only getting started.

For anyone considering an electric car, understanding the battery is crucial—and with Tesla, you can be confident you’re getting some of the best technology in the world.
